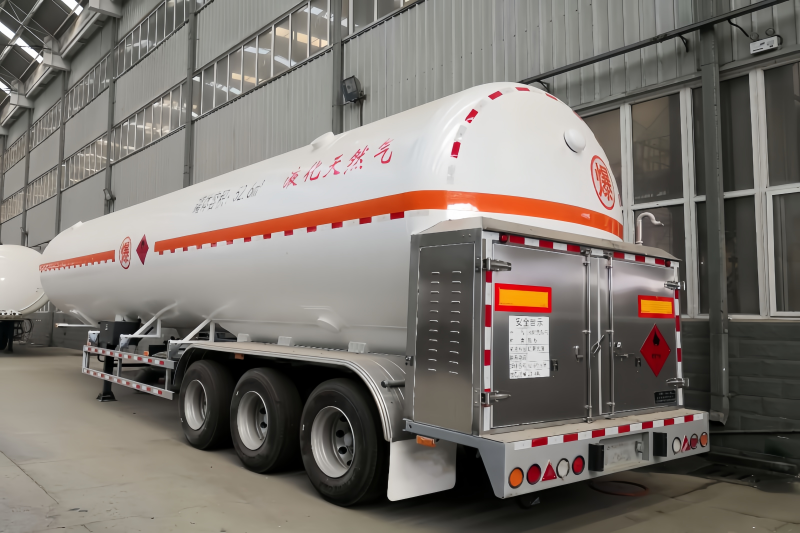

PCCS LNG Road Tanker

Basic Parameters

Standard: ISO9001, TUV, GB, ASME

Tank Material: Metal Tank

Max Payload: 22~28.36 Tons or Customized

Medium: LNG

Curb Weight: 11~17 Tons or Customized

Design Pressure: 0.65MPa or Customized

Design Temperature: -196~50 Degrees or Customized

Working Temperature: -162~50 Degrees or Customized

Corrosion Allowance: 0 mm or Customized

Joint Efficiency: 1.0 or Customized

Insulation Type: High Vacuum Multi-Layer Insulation

Transport Package: Normal

Specification: 20m3~52.6m3 or Customized

Features:

1. Transport volume ranges from 5m3 to 52m3.
2. The function liquid level meter is more accurate than ordinary digital liquid level meter.
3. The vacuum degree of transport tank is equivalent to that of the static storage tank. Without discharging the liquid, the safety valve of a full tanker will not open in 15-30 days.

Introduction:

The cryogenic semi-trailer tanker mainly consists of horizontal storage tank, half trailer chassis, operation box, cryogenic liquid pump, automatic compressor, flow hose and connection pieces between the tank and chassis. They are all characterized by high security, big storage capacity, flexible use and good heat insulation. They can be equipped with various accessories according to specific requirements.

Application:

It is a necessary gas carrier in cryogenic liquid transportation.
